The PingAccess rule

AuthZEN PDP is a PingAccess Add-on SDK rule that sends requests to an AuthZEN PDP. It maps REST requests and supports resource discovery and ordered policy layers. It delegates DPoP verification and MCP requests to coaz-pep. Configure the rule in the PingAccess console or through the admin API.

This rule uses AuthZEN 1.0 and supports PDP discovery. The built-in PingAuthorize Policy Decision Access Control and PingAuthorize Access Control rules use PingAuthorize's own APIs.

Upgrading to 0.4.0

Version 0.4.0 adds configuration validation. A rule saved under 0.3 can fail validation after upgrade. Requests through an invalid rule receive a 503 temporarily_unavailable response. Check each rule against the requirements below before deploying the JAR.

• style: mcp needs coaz_url, and every request on an MCP route goes to coaz-pep, not only tools/call. Nothing passes on a token alone.
• coaz_defaults is on by default: every MCP method is governed by the COAZ binding's default table.
• An MCP body the rule cannot read one way only is refused with a JSON-RPC error: a batch, invalid UTF-8, a BOM, trailing data, a case-variant member, a compressed or partial body.
• An access token PingAccess did not validate is a 401 invalid_token: protect the application, or tick allow_insecure for development.
• X-User-Token needs a JWKS and an audience. Without a JWKS it is ignored, and require_user_login without one is refused. The token must carry exp, sub and the audience.
• X-User-Token counts only as the principal's own login: its sub is the access token's subject, and it is neither the access token itself nor a delegated token. A route where staff approve for a customer sets user_token_subject: pdp, and the PDP judges whose login it is.
• The PDP gets coaz-pep's user context: user_scope, token_aud, user_acr, user_sub, user_iss, and authorization_details with the consented amount and creditor.
• Missing security settings are refused, not warned about: an API key or forwarded token over http, coaz_url without its key, discovery without pdp_allowlist, pdp_discovery_insecure, pdp_ssl_verify off. allow_insecure lets a development rule start with them, and logs each one.
• Every URL must be one the rule can call: absolute http or https with a host. http://authzen_pdp:8080 is refused - an underscore is not legal in a host name.
• A fail-open layer opens on an outage only. A 4xx, a redirect or an answer that is not a decision is a refusal, and closed.
• A resource whose metadata cannot be read is not the static PDP's. Only a resource that publishes nothing (a 404, or a document naming no PDP) falls back to authzen_url; an outage, a refusal or a document that does not validate serves the last good copy for up to one more TTL, then fails the resource layer by its mode.
• A payment needs a readable body with a from_account and an amount that is a JSON number greater than zero, or it is a 400 invalid_request before any PDP is asked. So is a payment with any field a policy weighs in the wrong shape: an account identifier that is not 1-64 letters, digits, _, ., : or -, a numeric string for the amount, a currency that is not three upper-case letters, a non-string description or a non-boolean internal_transfer. A read (list_accounts, get_balance) is only ever a GET or HEAD, and any POST with a payments segment is a payment.
• A path that could route two ways is refused: a path parameter (;jsessionid=…), a backslash, an empty or dot segment, an escaped reserved character, %, . or \, or a control character once decoded is a 400 invalid_request, as on coaz-pep and Kong. So is a request carrying X-HTTP-Method-Override, X-HTTP-Method or X-Method-Override, or a body that names a member twice in one object, in any case.

Build and install

The Add-on SDK is on no public Maven repository. Take it from a PingAccess install or, without one, from the public Docker image, which needs no licence to pull.

cd gateways/pingaccess/authzen-pdp
id=$(docker create pingidentity/pingaccess:9.1.0-latest)
mkdir -p .pa/lib && docker cp "$id:/opt/server/lib/pingaccess-sdk-9.1.0.1.jar" .pa/lib/ && docker rm "$id"
mvn verify                                    # tests, the coverage ratchet, the jar
# or, against an install:
mvn -Dpa.server.root=/opt/pingaccess -Dpa.sdk.version=9.1.0.1 verify

The jar is target/authzen-pdp-pingaccess-<version>.jar; PingAccess supplies Jackson, jose4j and slf4j, so nothing is bundled. PingAccess 9.1.0 and 9.1.1 ship Jackson 2.21.1, which has published advisories; none is reachable through the rule, which uses Jackson's tree model only, and the fix is a PingAccess release that ships Jackson 2.21.7 or later (the PingAccess guide's Jackson advisories section has the operator action). The bytecode is Java 17, so it needs a Java 17 or later runtime; it has been tested on PingAccess 9.1.0.1 (Java 21) and nothing earlier. Copy it to <PA_HOME>/deploy/ and restart; the DevOps image's local server profile is /opt/in/instance/deploy/. The rule then appears as AuthZEN PDP (class com.idpartners.pa.authzen.AuthZenRule) for Site and Agent destinations.

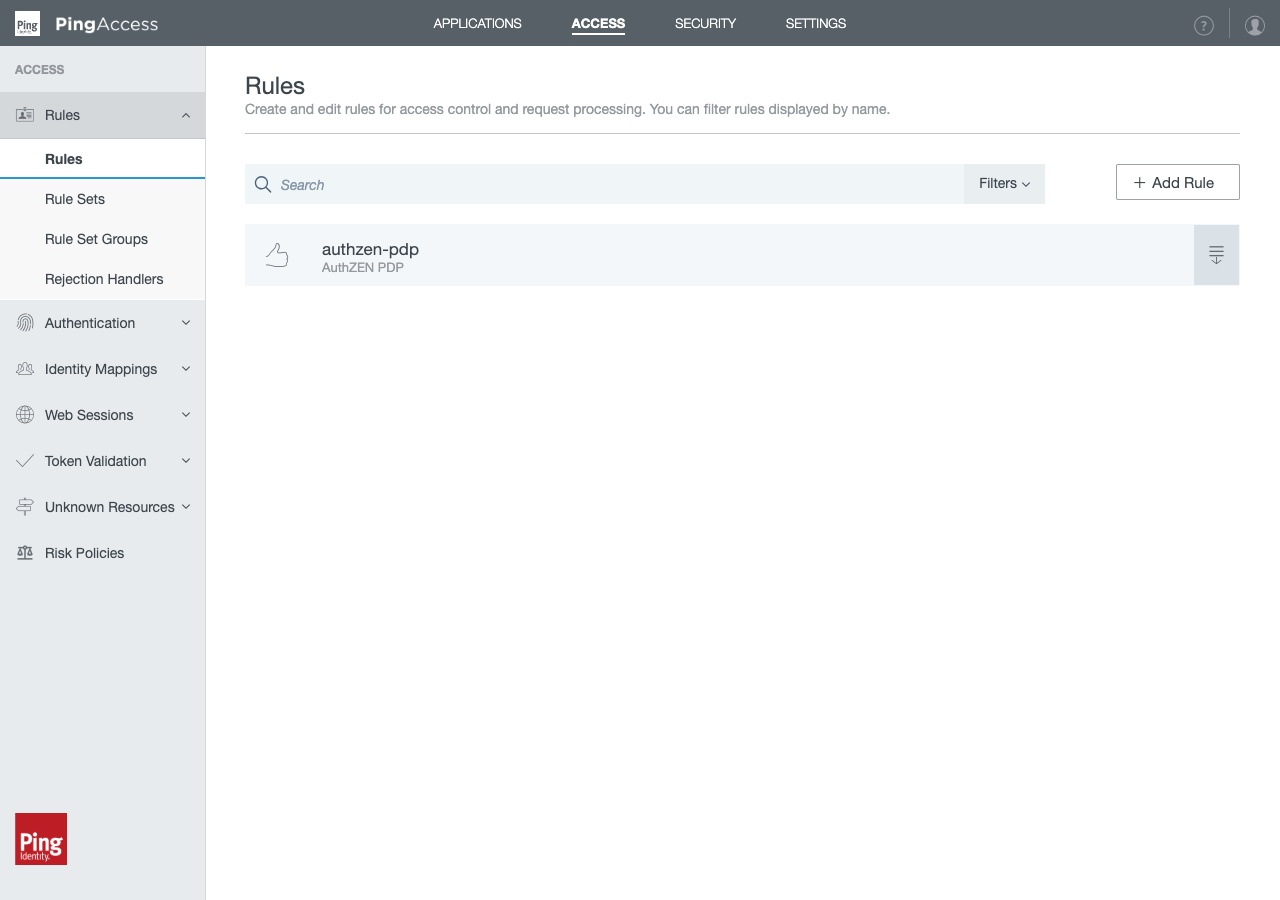

The rule in the console

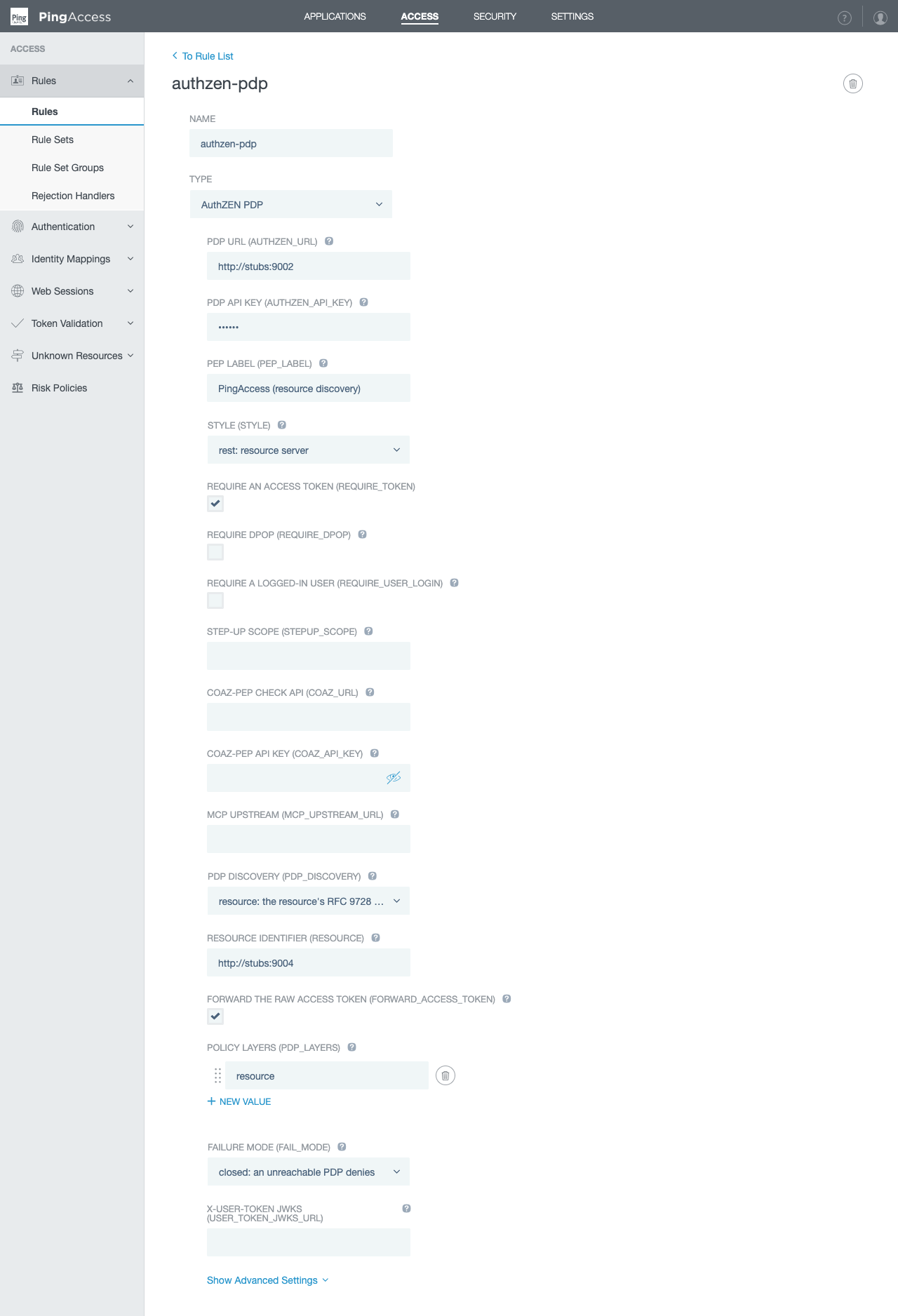

The console draws one form from the rule's descriptor: each field with a widget, a label, a default, a help note, and whether it is required or behind Show Advanced Settings. The same descriptor is what the admin API serves at GET /pa-admin-api/v3/rules/descriptors/AuthZenPdpRule. Captured from the demo's PingAccess (docker compose --profile pingaccess) as configured by its start-up hook.

Every field

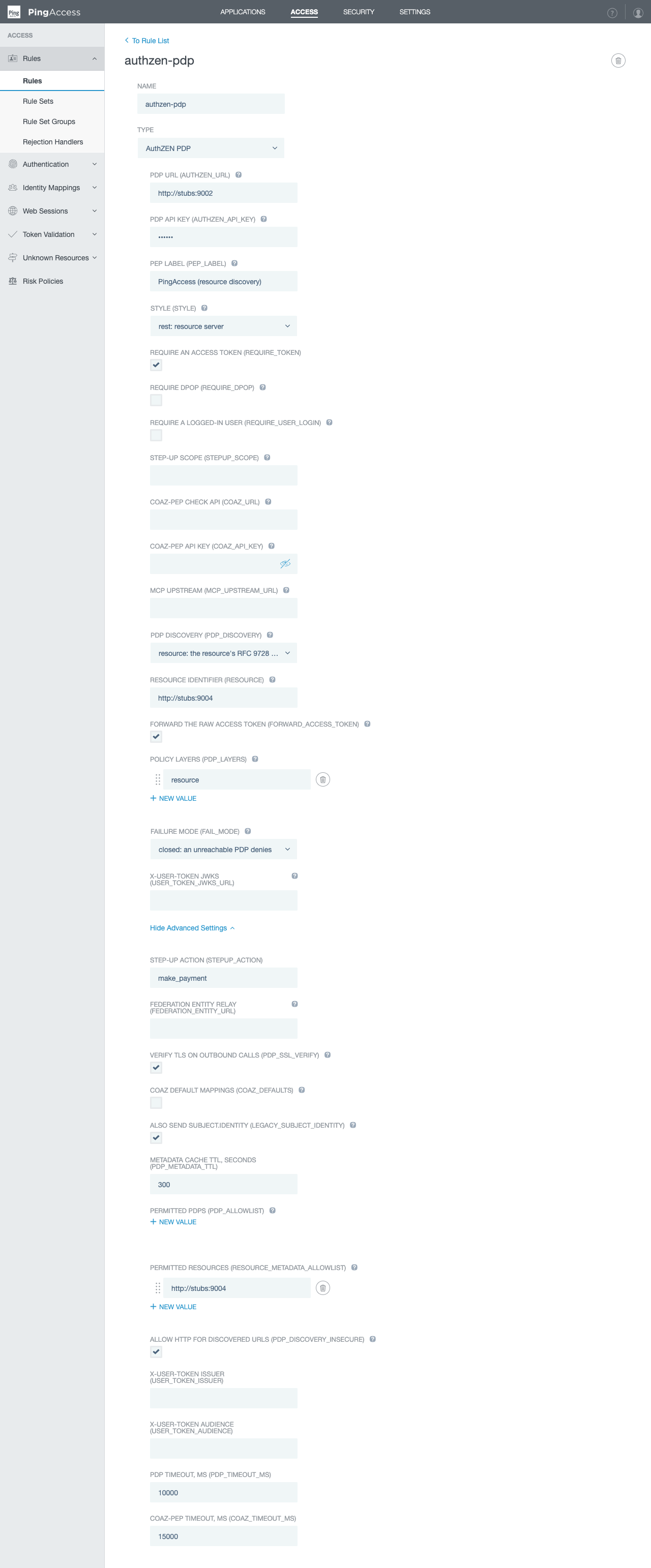

Names are as saved under configuration; the console shows a label with the name in brackets. advanced marks a field behind Show Advanced Settings.

The PDP

The route

coaz-pep

Discovery

Layers

The user token

Transport and compatibility

Saving validates twice: field constraints first, reported on the field under a Save Failed banner (the PDP URL must not be blank, the drop-downs must hold one of their options, the numbers must be at least 1), then the rule's own configure. That refuses a URL the rule could not call (not absolute http or https, no host, user info), style: mcp or require_dpop without coaz_url, a pdp_layers entry it cannot read, a JSON null for a drop-down, and - unless allow_insecure is ticked - every missing or weakened security setting, listed in one banner. The descriptor sets agentCachingDisabled: true: an agent never caches this rule's verdict, because it depends on the token, the body and the PDP's current view.

The admin API

The same configuration as JSON, keyed by the names above. This is the repository's reference sample; demo/pingaccess/hooks/81-after-start-process.sh is the whole sequence, site and application included, as a script.

curl -sk -u administrator:$PA_PASSWORD -H 'X-Xsrf-Header: PingAccess' -H 'Content-Type: application/json' \
  https://pa-admin:9000/pa-admin-api/v3/rules -d '{
  "name": "authzen-pdp",
  "className": "com.idpartners.pa.authzen.AuthZenRule",
  "supportedDestinations": ["Site", "Agent"],
  "configuration": {
    "authzen_url": "https://pdp.bank.example",
    "authzen_api_key": "...",
    "pep_label": "PEP#2 (Bank API edge)",
    "style": "rest",
    "require_token": true,
    "pdp_discovery": "resource",
    "resource": "https://api.bank.example",
    "resource_metadata_allowlist": ["https://api.bank.example"],
    "pdp_allowlist": ["https://pdp.bank.example", "https://estate-pdp.example"],
    "pdp_layers": ["https://estate-pdp.example fail-open", "resource"],
    "user_token_jwks_url": "https://as.bank.example/jwks",
    "user_token_audience": "https://api.bank.example"
  }
}'

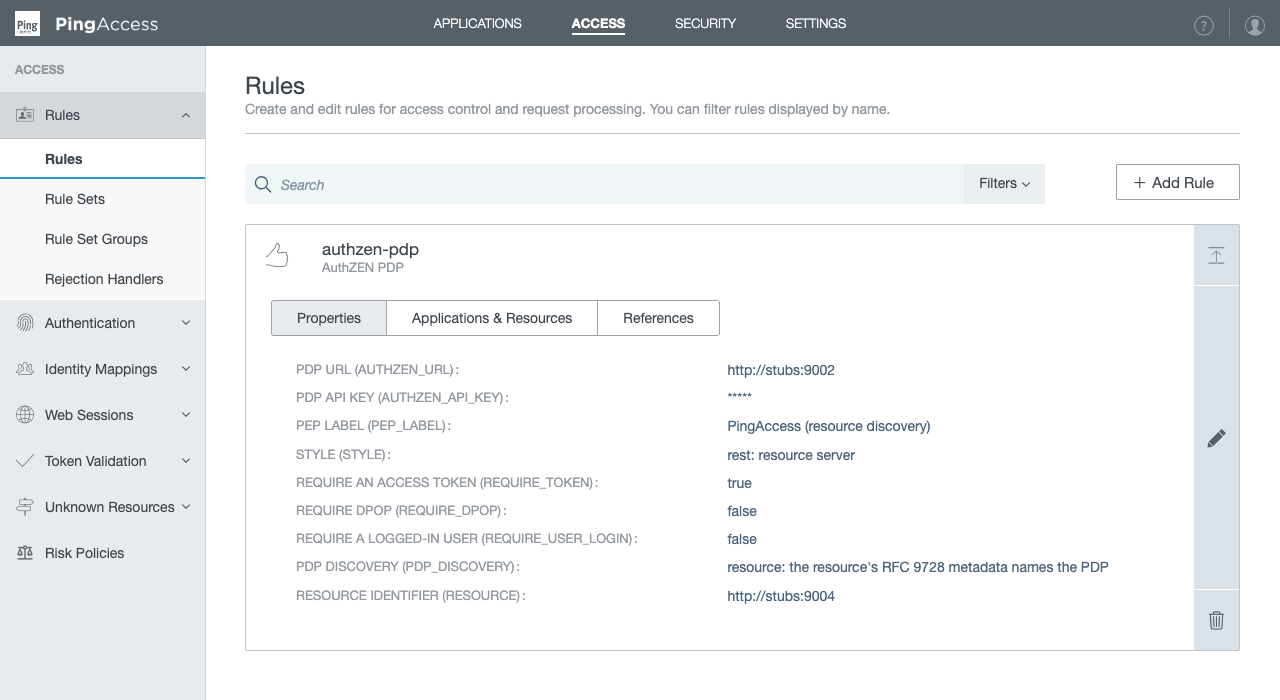

A saved rule reads back as GET /pa-admin-api/v3/rules/{id} with the form's values under configuration; concealed fields come back encrypted.

Attaching it to an application

Then POST /applications with the rule in the API policy. The demo's hook creates the site, the rule, the virtual host (when *:3000 is missing) and the application in that order; this is the shape of the application.

{
  "name": "bank",
  "contextRoot": "/",
  "applicationType": "API",
  "defaultAuthType": "API",
  "destination": "Site",
  "siteId": 1,
  "virtualHostIds": [1],
  "accessValidatorId": 0,                     # unprotected: the demo's tokens are unsigned, so its rule sets allow_insecure
  "enabled": true,
  "policy": { "API": [ { "type": "Rule", "id": 1 } ] }
}

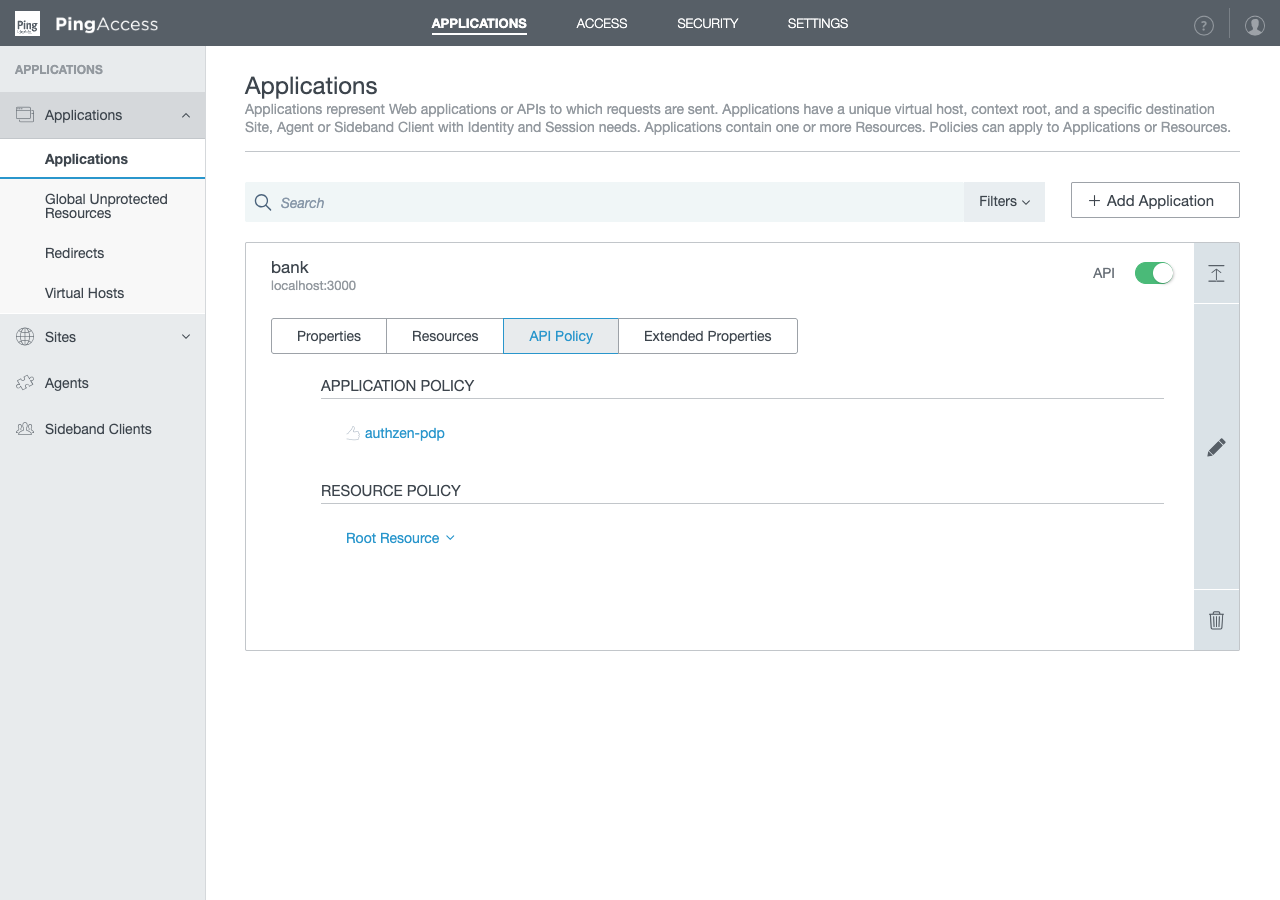

In the console: Applications → Applications, edit the application, the API Policy tab, drag authzen-pdp from Available Rules onto the policy. Applications are created disabled unless enabled is set. Unprotected applications still run rules, but the rule refuses a token PingAccess did not validate unless it is configured with allow_insecure, which is how the demo uses unsigned tokens. A production application has an access token validator, and then PingAccess validates the bearer before the rule runs.

What PingAccess does, and what the rule does

• The access token. When the application is protected, PingAccess validates the bearer token before any rule runs: signature or introspection, expiry, audience. The rule reads what PingAccess established from the exchange's identity and nothing else: the token's own payload is never read beside it, so a claim the identity lacks (act, cnf, acr) is absent until the validator's attribute mapping puts it there. A web session's identity carries no OAuth token metadata and validates no Authorization header, so a request carrying both is a 401 invalid_token, whatever allow_insecure says. Unprotected, PingAccess establishes no identity, and a request carrying a token is a 401 unless the rule has allow_insecure.
• DPoP. A DPoP-bound token is never a bearer token. require_dpop checks every request; without it, a token that is bound (cnf.jkt, or a DPoP token type) or presented as DPoP is checked anyway, as coaz-pep does on every route (RFC 9449 §7.2). A bound token sent as Bearer or without a proof is a 401 invalid_dpop_proof; the proof goes to coaz-pep's /v1/dpop/verify, and with no coaz_url the request is a 503. Bound is judged from the identity and, as a stricter check only, from the token's own payload. coaz-pep reads cnf.jkt from the token itself, so a DPoP-bound opaque token is always a 401: sender-constrained tokens must be JWTs. PingAccess's own DPoP enforcement (the application's dpopSettings) is worth keeping as well.
• The user token. Unlike Kong, the rule verifies X-User-Token itself, since jose4j is on the classpath: signature, exp, sub and the configured audience. Without user_token_jwks_url the token is ignored. A verified token counts only as the principal's own login, unless user_token_subject is pdp; whenever one counts, the PDP is told whose it is (user_sub, user_iss), as coaz-pep tells it.
• MCP routes. Every request goes to coaz-pep's /v1/mcp/check. A body that is not exactly one JSON-RPC message the rule read in full is refused first: 400 with -32700 or -32600, 413 for a partial body, 415 for a compressed one.
• Headers. A permit removes every X-Auth-* header the client sent before setting the ones the PEP asserts. Values from a PDP's answer are cleaned for a header. Inside WWW-Authenticate every PEP quotes a value the same way: CR, LF and tab become a space, anything else outside printable ASCII is dropped, and backslash and double quote are escaped, so a value cannot close its parameter and add another.
• Refusals. The rule renders every refusal by the decision contract every PEP in this repository shares (core/authzen/refusal), held to the same vectors: the same status, body and WWW-Authenticate as coaz-pep, the Kong plugins and the Node SDK. A body is {"status", "error", "error_description"}, plus scope, acr_values, max_age or doctype where they apply and authz_challenge when the client can resolve it. A challenge flag (identity_proofing_required, then step_up_required, then authn_required) refuses a permit too; otherwise a deny's context.error names the error, and one the contract lacks is access_denied. A step-up is 403 insufficient_scope; login_required, insufficient_user_authentication (RFC 9470, with acr_values and max_age) and identity_verification_required are 401. invalid_token and insufficient_scope challenges name the route's RFC 9728 metadata as resource_metadata when resource is set. No PDP answer, or a rule that is not configured, saturated or failed, is 503 temporarily_unavailable.
• The rule shares policy-layer behaviour with the Kong plugin. Fail-open applies only when a PDP is unavailable. See the Kong reference for the shared settings and docs/pingaccess.md for the PingAccess implementation and every refusal the rule makes itself.

A PDP asking for stronger or more recent authentication, from the shared vectors:

HTTP/1.1 401 Unauthorized
WWW-Authenticate: Bearer error="insufficient_user_authentication", acr_values="urn:bank:acr:strong", max_age="300"
Content-Type: application/json

{"status":401,"error":"insufficient_user_authentication",
 "error_description":"This operation needs acr urn:bank:acr:strong.",
 "acr_values":"urn:bank:acr:strong","max_age":300,
 "authz_challenge":{"type":"authn","acr_values":"urn:bank:acr:strong","max_age":300,
                    "reason":"This operation needs acr urn:bank:acr:strong.","pep":"pingaccess-pep"}}
