The demo

Every component wired together: a stub trust anchor, resources that are and are not federation members, two banks' PDPs, an estate PDP and a rogue one, coaz-pep three times in three discovery modes, the Kong plugin and the PingAccess rule in front of the same resource, and a console that shows the chain each gateway followed. Its compose file is the fullest worked configuration in the repository, and the console is the screen on which every setting's effect can be seen.

Run it

cd demo && docker compose up --build -d && ./demo.sh        # the scripted walk
open http://localhost:8088                                        # the console

docker compose --profile kong up -d            # add Kong on :8000, the plugin doing discovery in Lua
docker compose --profile pingaccess up -d      # add PingAccess on :3000 (needs Ping DevOps credentials in demo/.env)

demo/run-local.sh --console                    # the same without Docker; needs Go

The cast

Then coaz-pep three times: pep-static (:9192, told where its PDP is), pep-resource (:9193, trusts each resource's own well-known), pep-federation (:9194, trusts the federation's word).

The compose file

demo/docker-compose.yml, complete. Everything is plain http on a private network, hence PDP_DISCOVERY_INSECURE; do not copy that line anywhere real. Allowlists list each stub with its port because an entry matches scheme, host and port.

services:
  stubs:
    build: { context: ../core, target: demo-stubs }
    environment:
      STUB_HOST: stubs
      ANCHORS_FILE: /shared/anchors.json
    volumes: [ "shared:/shared" ]
    ports: [ "9000-9009:9000-9009", "9098-9099:9098-9099" ]
    healthcheck:
      test: ["CMD", "wget", "-q", "-O", "-", "http://localhost:9099/healthz"]
      interval: 2s
      timeout: 2s
      retries: 15

  pep-static:
    build: { context: ../core, target: coaz-pep }
    environment: &pep-env
      AUTHZEN_URL: http://stubs:9002/tenants/bank-a
      AUTHZEN_API_KEY: static-pdp-key
      CHECK_API_TOKEN: demo
      PEP_ALLOW_INSECURE: "true"   # unsigned demo tokens, no JWKS: coaz-pep refuses to start without this. Never anywhere real
      MCP_UPSTREAM_ALLOWLIST: http://stubs:9001,http://stubs:9004,http://stubs:9005,http://stubs:9006,http://stubs:9009
      PDP_METADATA_TTL: 15s        # short so the console's trace shows fetches on every run; the shipped default is 5m
    ports: [ "9192:9192" ]
    depends_on: { stubs: { condition: service_healthy } }

  pep-resource:
    build: { context: ../core, target: coaz-pep }
    environment:
      <<: *pep-env
      PDP_DISCOVERY: resource
      PDP_DISCOVERY_INSECURE: "true"
      RESOURCE_METADATA_ALLOWLIST: http://stubs:9001,http://stubs:9004,http://stubs:9005,http://stubs:9006,http://stubs:9007,http://stubs:9009,http://pep-federation:9192
      # deliberately no PDP_ALLOWLIST (logged at boot): the impostor may name the rogue
    ports: [ "9193:9192" ]
    depends_on: { stubs: { condition: service_healthy } }

  pep-federation:
    build: { context: ../core, target: coaz-pep }
    environment:
      <<: *pep-env
      PDP_DISCOVERY: federation
      PDP_DISCOVERY_INSECURE: "true"
      RESOURCE_METADATA_ALLOWLIST: http://stubs:9001,http://stubs:9004,http://stubs:9005,http://stubs:9006,http://stubs:9007,http://stubs:9009,http://pep-federation:9192
      PDP_ALLOWLIST: http://stubs:9002,http://stubs:9008,http://stubs:9098
      FEDERATION_TRUST_ANCHORS_FILE: /shared/anchors.json
      FEDERATION_FETCH_ALLOWLIST: http://stubs:9000
      FEDERATION_ENTITY_ID: http://pep-federation:9192
      FEDERATION_ENTITY_KEY_FILE: /tmp/entity-key.json
      FEDERATION_ENTITY_KEY_GENERATE: "true"
      FEDERATION_AUTHORITY_HINTS: http://stubs:9000
    volumes: [ "shared:/shared:ro" ]
    ports: [ "9194:9192" ]
    depends_on: { stubs: { condition: service_healthy } }

  console:
    build: { context: ../core, target: demo-console }
    environment:
      LISTEN: ":8088"
      STUBS_BASE: http://stubs
      STUBS_CONTROL: http://stubs:9099
      PEP_STATIC: http://pep-static:9192
      PEP_RESOURCE: http://pep-resource:9192
      PEP_FEDERATION: http://pep-federation:9192
      GATEWAY_ENTITY: http://pep-federation:9192
      CHECK_API_TOKEN: demo
    ports: [ "8088:8088" ]
    depends_on: { stubs: { condition: service_healthy } }

  kong:
    profiles: ["kong"]
    image: kong:3.9
    environment:
      KONG_DATABASE: "off"
      KONG_DECLARATIVE_CONFIG: /kong/kong.yml
      KONG_PLUGINS: bundled,authzen-pdp
      KONG_LUA_PACKAGE_PATH: /opt/?.lua;;
      KONG_PROXY_LISTEN: 0.0.0.0:8000
      KONG_ADMIN_LISTEN: "off"
    volumes:
      - ./kong/kong.yml:/kong/kong.yml:ro
      - ../gateways/kong/authzen-pdp:/opt/kong/plugins/authzen-pdp:ro
    ports: [ "8000:8000" ]

  pingaccess:
    profiles: ["pingaccess"]
    build: { context: .., dockerfile: demo/pingaccess/Dockerfile }
    environment:
      PING_IDENTITY_ACCEPT_EULA: "YES"
      PING_IDENTITY_DEVOPS_USER: ${PING_IDENTITY_DEVOPS_USER:-}
      PING_IDENTITY_DEVOPS_KEY: ${PING_IDENTITY_DEVOPS_KEY:-}
      AUTHZEN_URL: http://stubs:9002
      AUTHZEN_API_KEY: static-pdp-key
      RESOURCE: http://stubs:9004
      SITE_TARGET: stubs:9004
      PEP_LABEL: "PingAccess (resource discovery)"
    ports: [ "3000:3000", "9443:9000" ]      # the engine; the admin console (administrator / 2FederateM0re)

volumes:
  shared:

The console

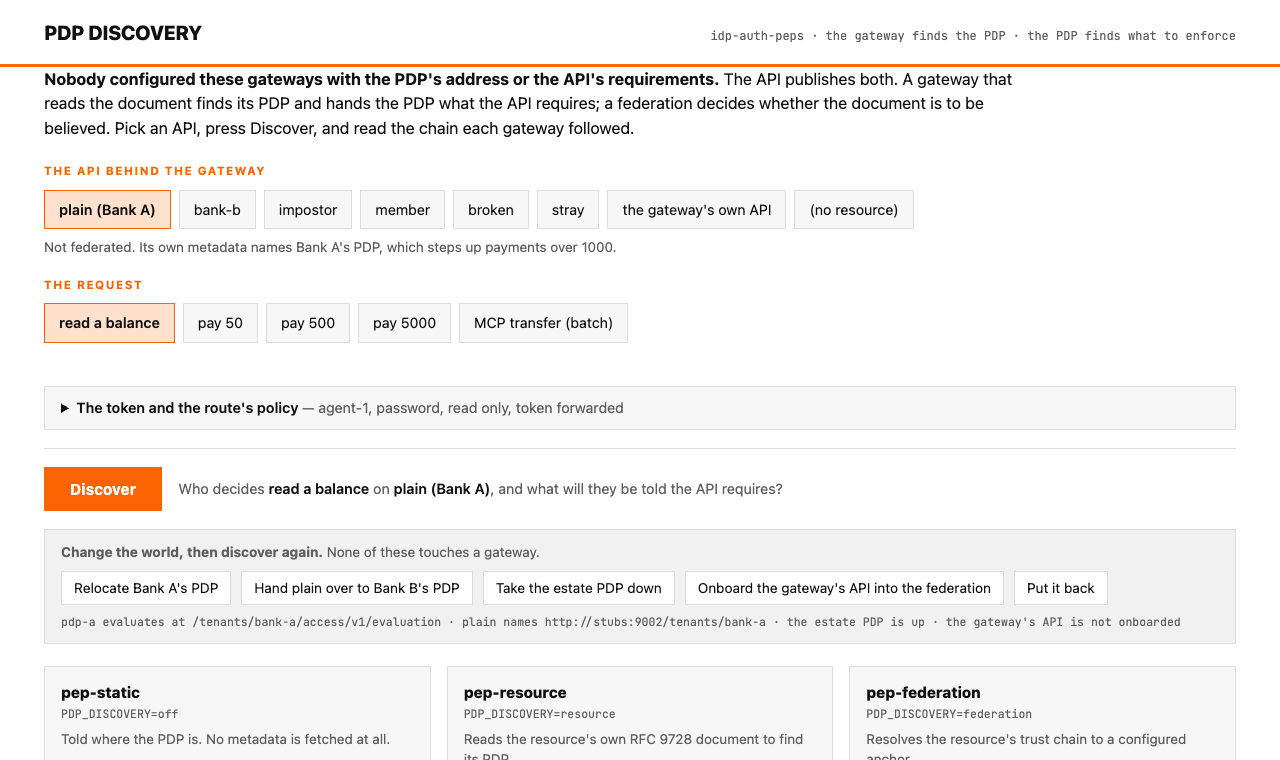

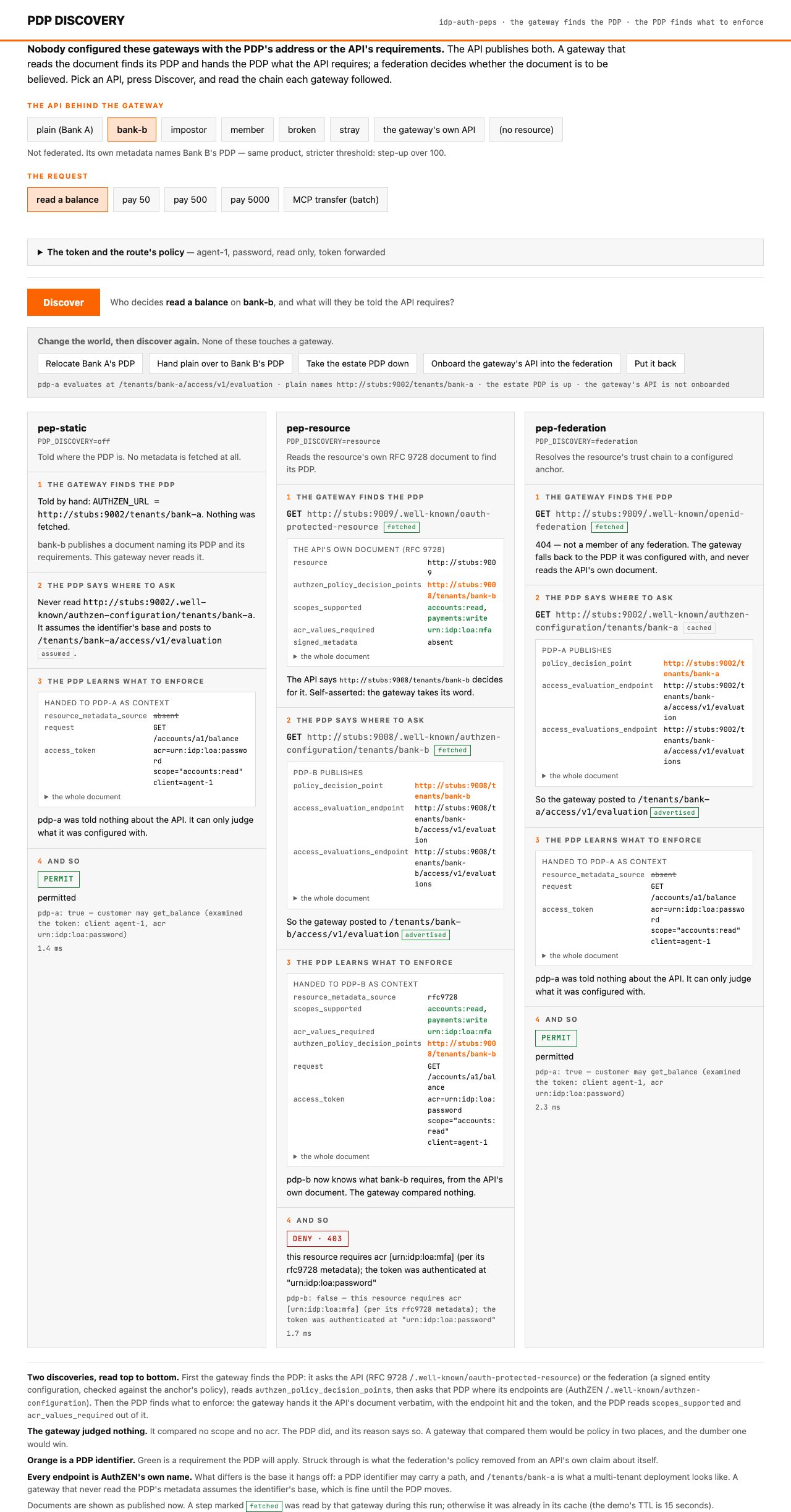

Pick an API and a request, press Discover, and each of the three gateways shows the chain it followed, top to bottom: the document it read to find the PDP, the PDP's own metadata and the endpoint used, the context it handed the PDP, and last the decision.

The controls

The chain

The levers

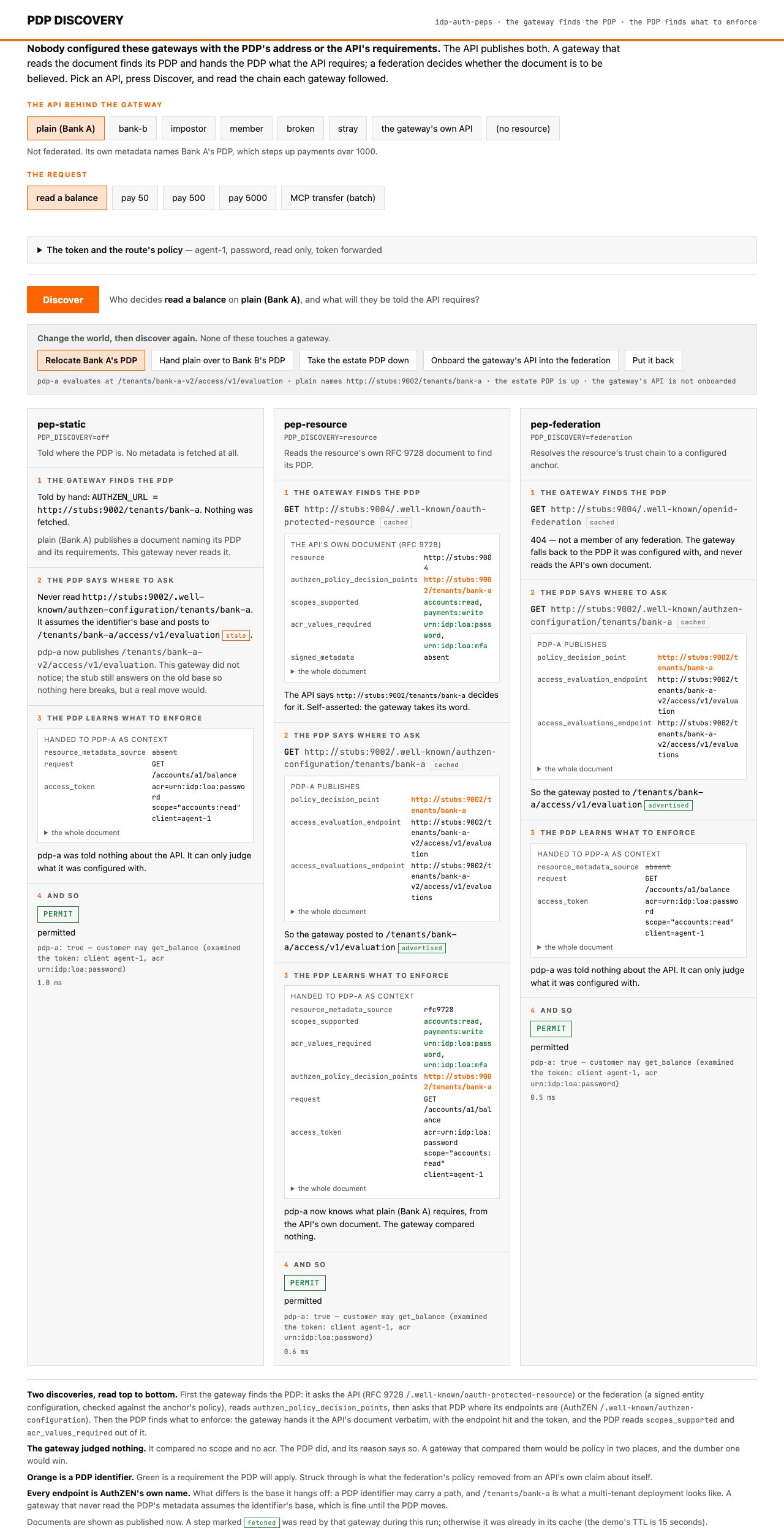

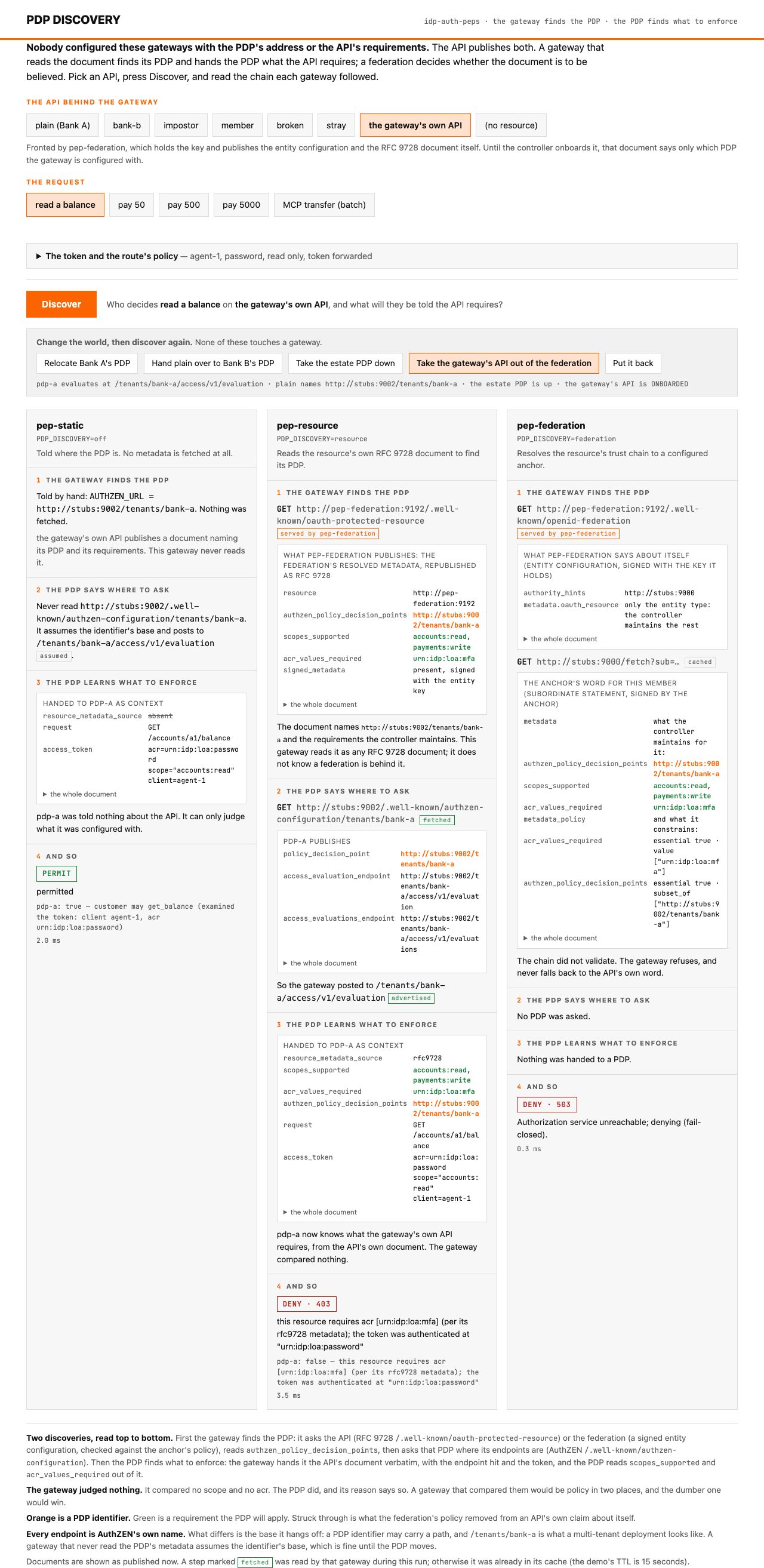

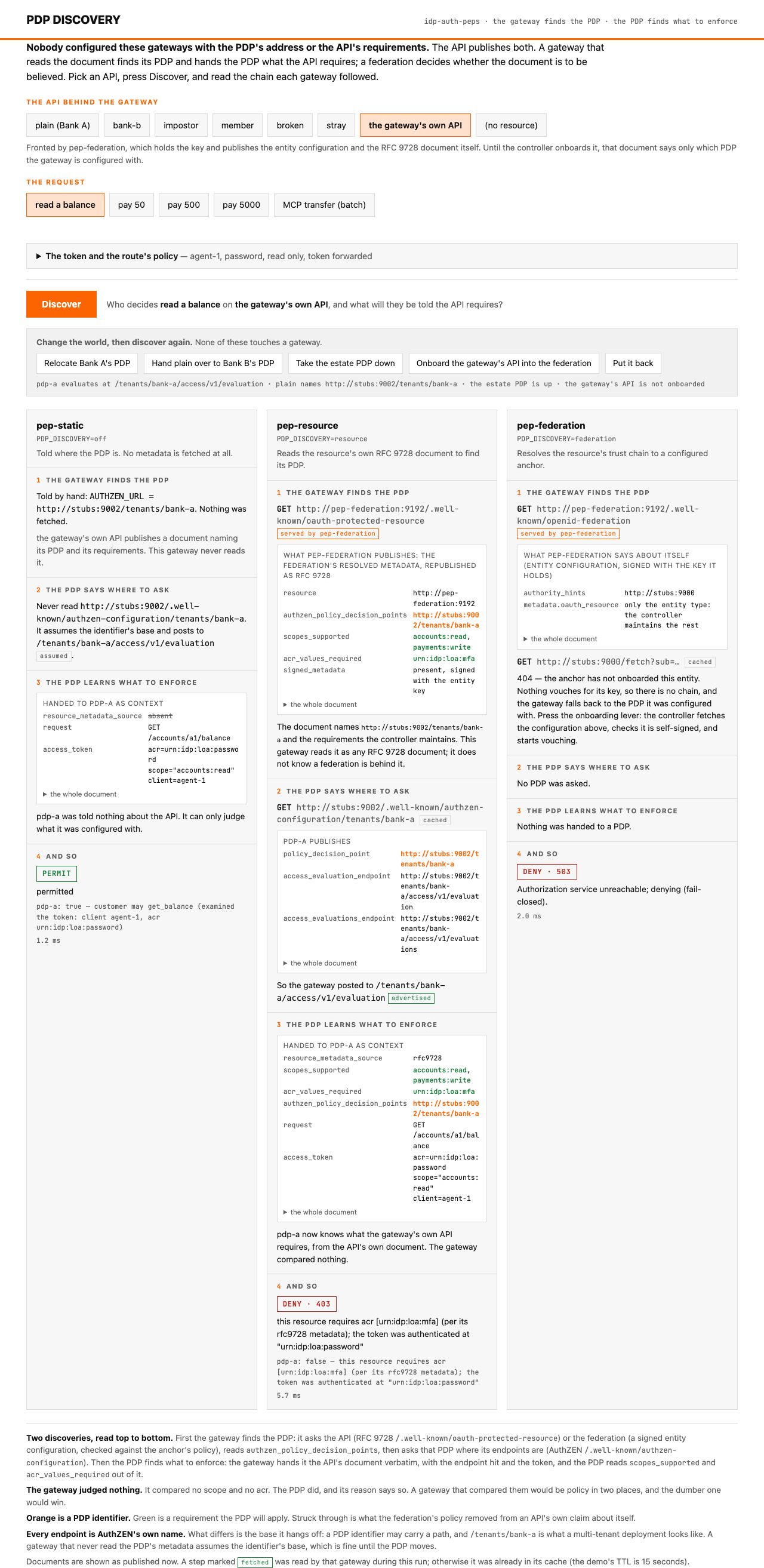

Four buttons change the world while it runs. None restarts a PEP or edits its configuration; the PEPs pick the change up on their next metadata refresh, and the documents in the chain change under them.

The control API

The stubs' control endpoint at :9099/control, which the console relays as /api/control. GET returns the state; POST {"op": …} pulls a lever.

curl -s -X POST -H 'Content-Type: application/json' -d '{"op":"onboard","entity":"http://pep-federation:9192"}' http://localhost:9099/control
curl -s http://localhost:9099/control | jq .
{ "onboarded": ["http://pep-federation:9192"], "pdp_down": [],
  "pdp_evaluation_path": { "pdp-a": "/tenants/bank-a/access/v1/evaluation", … },
  "pdp_home": { "pdp-a": "/tenants/bank-a", … },
  "resource_pdps": { "plain": ["http://stubs:9002/tenants/bank-a"], … } }

The scripted walk

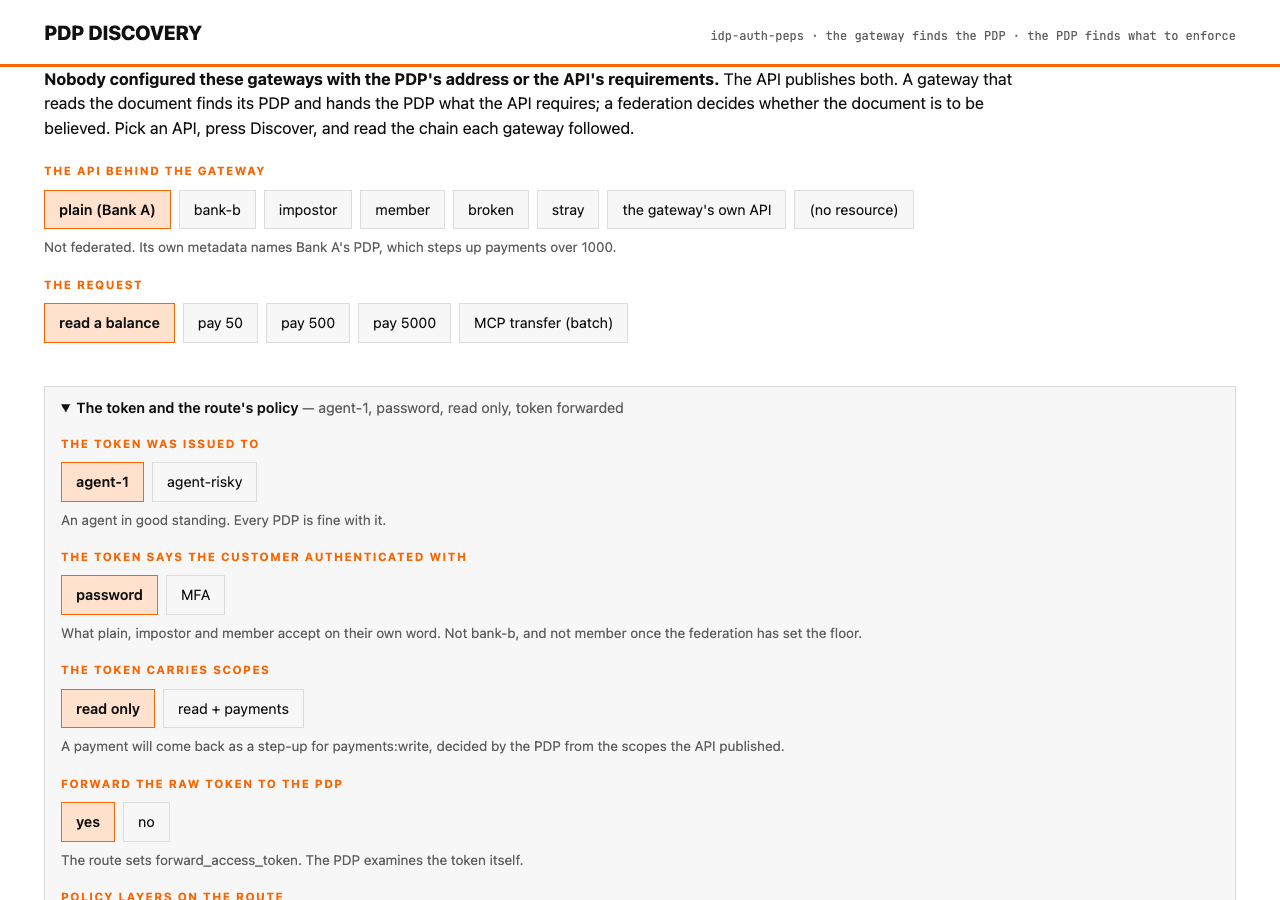

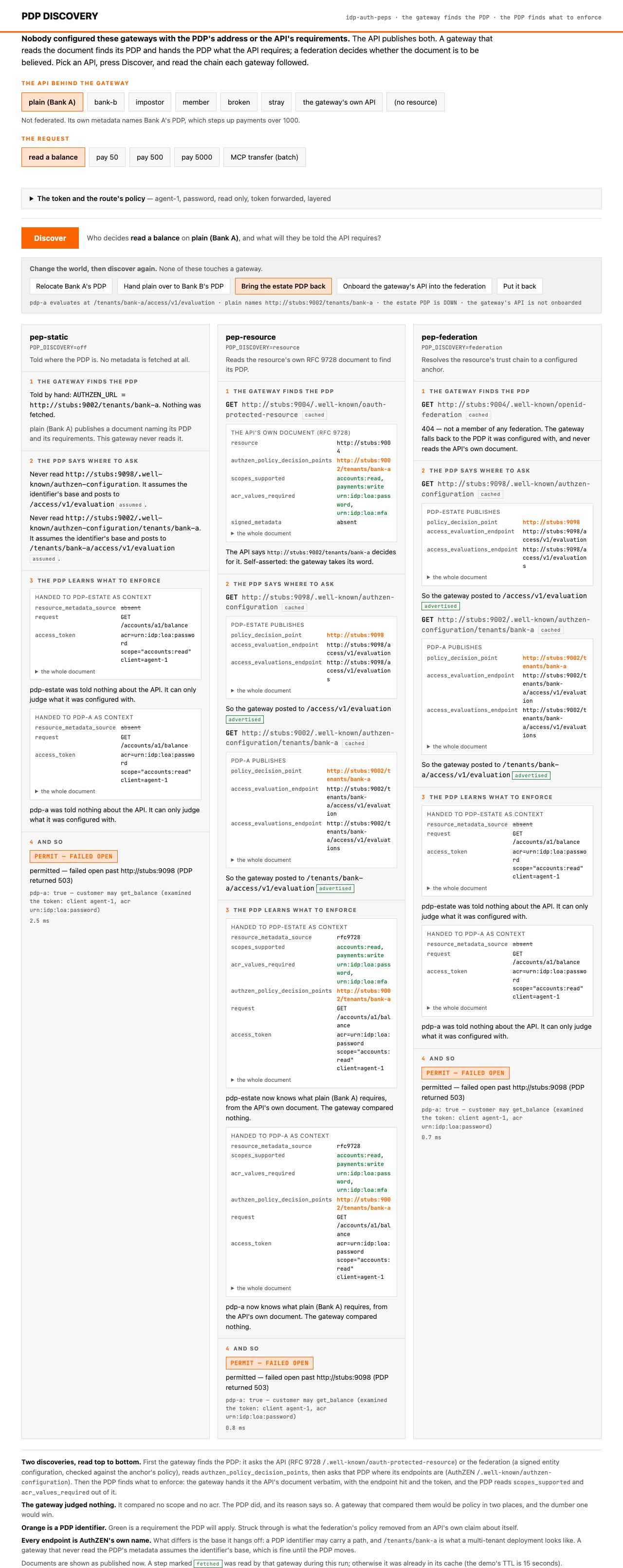

demo/demo.sh runs the same requests against the three PEPs' HTTP check APIs and prints the decision, the status and the body. Its sections, in order: what the metadata says; where the PDP comes from and what it was told; two banks, one gateway; what the resource requires is the PDP's to enforce, and the federation sets the floor; layers; failing open, deliberately; the gateway as the resource's federation face; the challenge contract; and Kong, when the profile is up. Shape the token with CLIENT, ACR and SCOPE; set FORWARD=no or LAYERS per call.

One container, hosted

demo/railway/Dockerfile builds the stubs, the three PEPs and the console into one image, and demo/railway/entrypoint.sh runs them on localhost with the console on $PORT. It is the local runner without the Go toolchain, and it is what runs at demo-production-6ee6.up.railway.app, redeployed on every push to main.

docker build -f demo/railway/Dockerfile -t idp-auth-peps-demo .
docker run --rm -p 8088:8088 idp-auth-peps-demo

On Railway: a service pointed at the repository with the Dockerfile path set to demo/railway/Dockerfile and the healthcheck at /healthz. The levers are shared state, so two people clicking at once will surprise each other, and nothing in it is authenticated: it is a demo of PDP discovery, not a service.
