Reference

Configuring the AuthZEN enforcement points

One page per component, every configurable item with its type, default and meaning, and a complete working configuration for each. Where a component has a screen, the screen is shown. Where it does not, what the setting produces is shown instead.

The components

core/ · Gocoaz-pep

The engine. Serves Envoy ext_authz gRPC and an HTTP check API; owns PDP discovery, federation, token validation, DPoP and COAZ. Configured by environment variables and per-route knobs.

gateways/envoy/ · YAMLEnvoy · Istio · agentgateway

How to attach coaz-pep as an external authorizer, and how per-route knobs travel as ext_authz context_extensions.

gateways/kong/ · LuaKong plugin

authzen-pdp: with coaz_url the whole decision is coaz-pep's, every MCP request included; without it, native REST mapping and RFC 9728 and AuthZEN discovery in Lua behind an auth plugin. Configured as plugin config, shown in Kong Manager.

gateways/kong/sideband-pdp/ · LuaKong sideband plugin

sideband-pdp: the same discovery, layers and failure rules in front of PingAuthorize's Sideband API, where the policy owns the request mapping and the deny. Configured as plugin config, shown in Kong Manager.

gateways/pingaccess/ · JavaPingAccess rule

AuthZEN PDP: an Add-on SDK rule with the same knobs, configured in the PingAccess console or admin API.

sdk/node/ · TypeScriptNode SDK

@id-partners/authzen-pep: an AuthZEN client, Express middleware, an MCP guard and a federation entity, configured as options in code.

demo/ · composeThe demo

Every component above wired together with a stub federation and PDPs, the console, and the levers. Its compose file is the fullest worked configuration in the repository.

Where each setting lives

Every enforcement point takes the same set of knobs, spelled the same way. What differs is only the channel they arrive through.

Component	Service-wide settings	Per-route settings	Screen
coaz-pep	environment variables	ext_authz `context_extensions`, or the `config` object of an HTTP check	none; its effects show in the demo console and in the documents it serves
Envoy · Istio · agentgateway	the coaz-pep deployment's environment	`context_extensions` in the filter, the EnvoyFilter, or the agentgateway policy `context`	none
Kong plugin	—	plugin `config` on a route or service	Kong Manager
Kong sideband plugin	—	plugin `config` on a route or service	Kong Manager
PingAccess rule	—	the rule's configuration, attached to an application's API policy	the PingAccess console
Node SDK	client options	middleware, guard and per-call options	none

Settings every PEP shares

These names mean the same thing on every surface. Each component page lists them again with that component's spelling, defaults and channel.

Setting	What it decides
`authzen_url` / `AUTHZEN_URL`	The static PDP. It decides when discovery is off or a resource publishes nothing, it is always permitted, and it is the one PDP that receives the configured API key.
`style`	`rest` maps an HTTP request to an evaluation; `mcp` treats the route as an MCP edge and authorises JSON-RPC.
`require_token`	Deny a request that carries no readable access token.
`require_dpop`	Enforce the RFC 9449 sender constraint. Kong and PingAccess delegate the proof check to coaz-pep.
`require_user_login`, `stepup_scope`, `stepup_action`	The RFC 9470 challenges: demand a logged-in end user, and a consented scope for a named action.
`mcp_upstream_url`	The MCP server whose `tools/list` declares the COAZ mappings. Setting it enables per-tool-call authorisation.
`pdp_discovery` / `PDP_DISCOVERY`	`off`, `authzen`, `resource`, or (coaz-pep only) `federation`. How the PDP is found.
`resource`	The protected resource's identifier, RFC 8707. The key discovery starts from.
`pdp_allowlist`, `resource_metadata_allowlist`	What discovery may reach: which PDPs a document may name, which resources may be looked up.
`forward_access_token`	Hand the PDP the raw token as `context.access_token`. Only over a TLS, authenticated PDP connection.
`pdp_layers`, `fail_mode`	The ordered PDPs to ask, every one of which must permit, and what a layer does when its PDP cannot be reached.
`federation_entity_url` / `FEDERATION_ENTITY_ID`	Serve the resource's two well-known documents: coaz-pep holds the key; Kong and PingAccess relay from it.
`coaz_defaults`, `legacy_subject_identity`	Decide every MCP method with the COAZ binding's default mappings where nothing is declared — on by default, `false` opts out; keep sending the pre-AuthZEN `subject.identity` field.
`allow_insecure` / `PEP_ALLOW_INSECURE` / `allowInsecure`	Start, or accept a configuration, despite missing security settings — logged every time. Every PEP refuses without it. Development and demos only.

What has a screen

Two of the five surfaces have a console: Kong Manager shows a plugin's configuration, and the PingAccess console draws a form from the rule's descriptor. Both are captured on their pages. coaz-pep, the Envoy family and the Node SDK are configured in files and code, so there is no form to show. For those, the pages show what a setting produces: the startup log that names what is set, the well-known documents the PEP serves, and the demo console's trace of a request under that configuration.

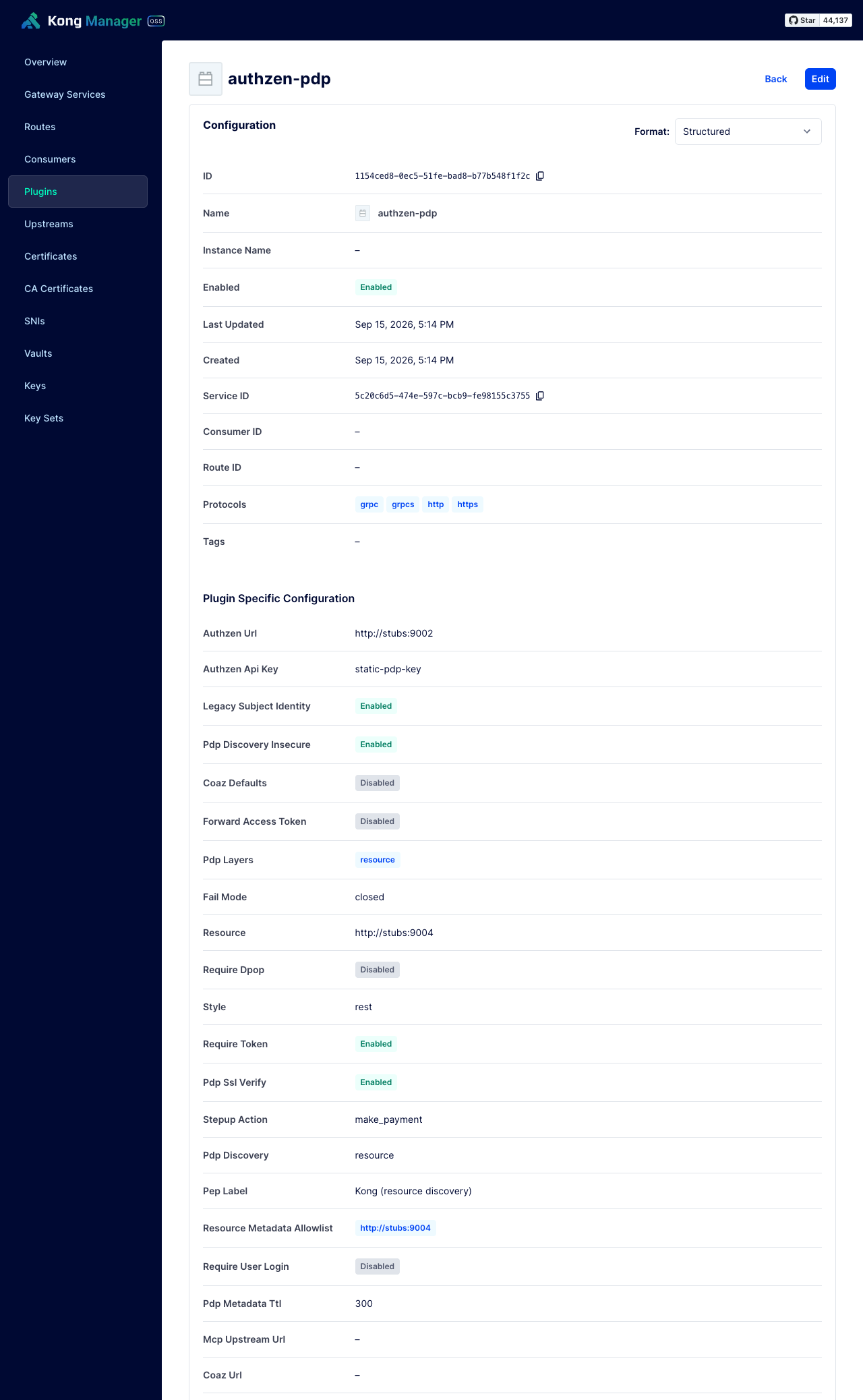

Kong Manager showing the authzen-pdp plugin's configuration — **Kong Manager**, the plugin as Kong shows it. Every field on the Kong page.

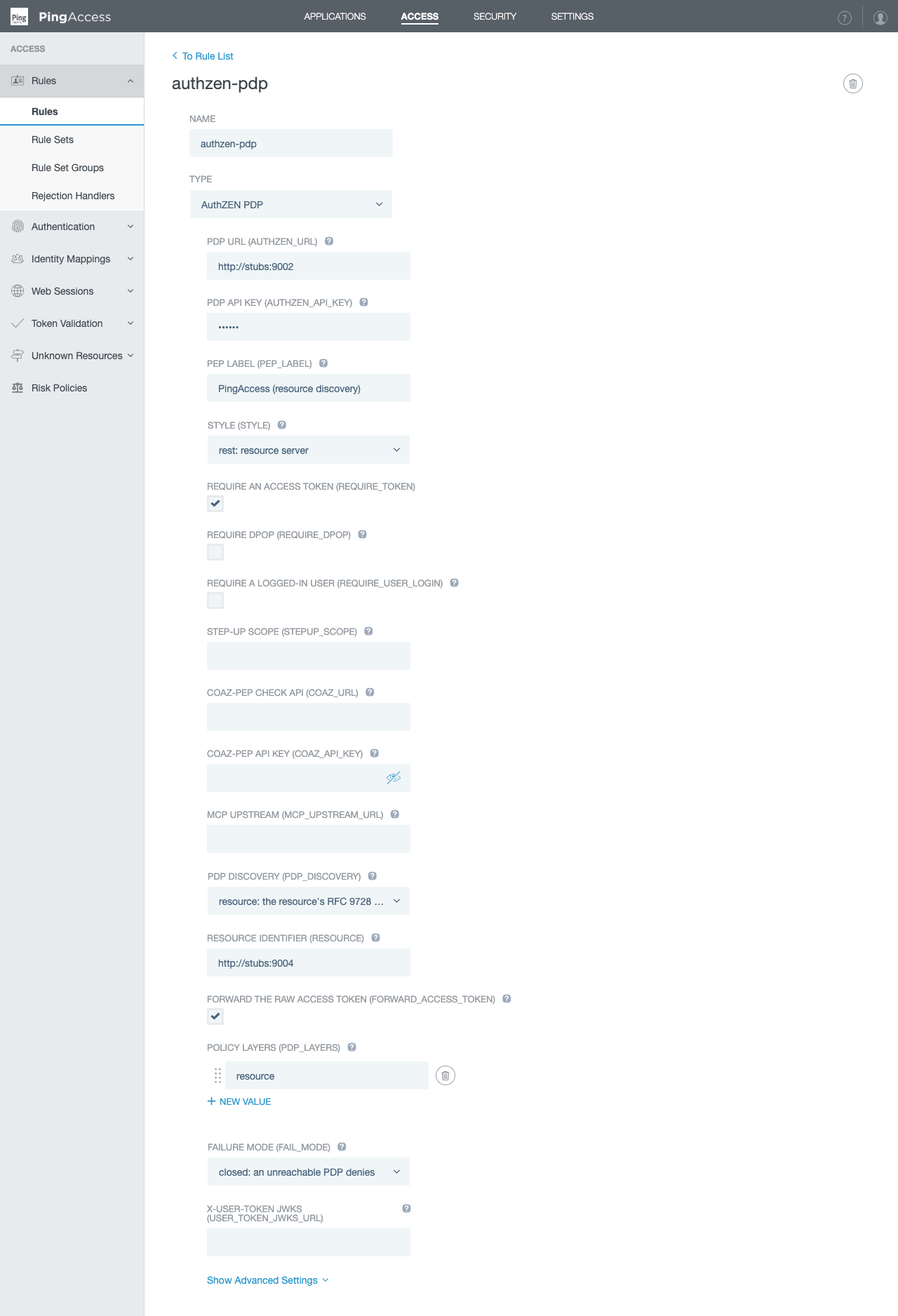

The PingAccess console showing the AuthZEN PDP rule's form — **The PingAccess console**, the rule's form. Every field on the PingAccess page.

Conventions

Allowlists are lists of URL prefixes. An entry matches on scheme, host and port at a path boundary: https://pdp.example admits https://pdp.example/tenants/a and refuses https://pdp.example.evil.test. Comma-separated in environment variables, arrays in plugin config and code.
Layer lists are ordered. An entry is static, resource, or a PDP identifier, optionally followed by a space and fail-open or fail-closed: https://estate.example fail-open, resource. Comma-separated in environment variables and Envoy knobs, arrays elsewhere.
Booleans in per-route knobs are the strings "true" and "false", because ext_authz context_extensions carries only strings. Kong and PingAccess use real booleans; the Node SDK uses true and false.
Durations: Go durations in environment variables (15s, 5m), seconds in Kong and PingAccess, milliseconds in the Node SDK.
Well-known paths: RFC 9728 inserts its segment after the host and keeps the identifier's path after it (/.well-known/oauth-protected-resource/bank); AuthZEN does the same (/.well-known/authzen-configuration/tenants/bank-a); OpenID Federation appends its segment to the identifier's path (/bank/.well-known/openid-federation).
Fail closed is the default everywhere: a PDP that cannot be reached is a 503 (Envoy family, Kong, PingAccess) or a pdp_error verdict rendered as 502 (Node). fail_mode and a layer's own modifier are the only ways to change that, and neither ever turns a deny or a refusal into a permit.
